Indoor Push Around Electric Small Scissor Lifts Platforms Single Person Mini Aerial Work Platform
Product Details:
| Place of Origin: | China |
| Brand Name: | JQLift |
| Certification: | CE |
| Model Number: | SF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Packaging Details: | Export Standard Plywood Case Full Packed, Wooden Tray |
| Delivery Time: | 20 Work Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 PCS / Year |
|
Detail Information |
|||
| Lift Mechanism: | Scissor Lift | Drive Mode: | Push Around |
|---|---|---|---|
| Lift Mode: | Hydraulic, Electric Motor, Battery | Power: | By Battery |
| Material: | High-duty Steel Structure | Color: | Red, Yellow, Reddish Orange, Customized |
| Warranty: | 1 Year | After-sales Service Provided: | Video Technical Support, Online Support |
| Key Words: | Small Scissor Lift, Mini Scissor Lift, Electric Scissor Lift, Aerial Work Platform, Indoor Work, Man Lift | Feature: | Easy Operation, Low Noise, Convenience. Safety, People Can Operate On The Platform |
Product Description

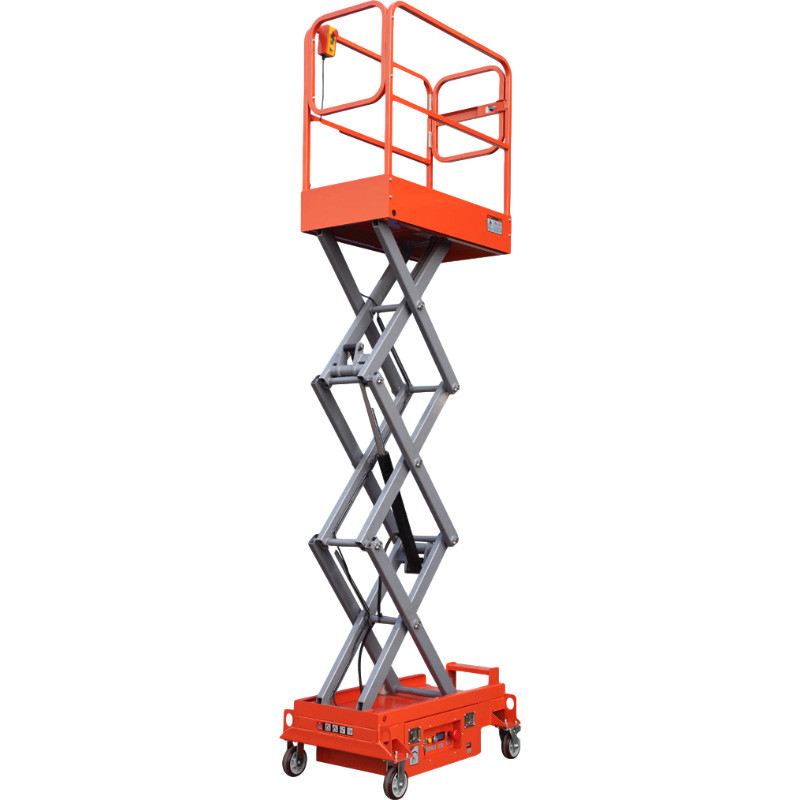

Indoor Push Around Electric Small Scissor Lifts
SF Series 3.8m ~ 6.8m
The SF series Indoor Push Around Electric Small Scissor Lifts features a lower platform entrance and a stable scissor lift system, making it ideal for indoor and outdoor maintenance, decoration, and more. With various height models available, it meets diverse needs. Suited for construction, interior decoration, and electrical work, its light weight design enables easy passage through standard doors and operation at elevated heights in narrow spaces.
Features And Safety Measures
- Battery charge indicator
- Self-lock gate on platform
- Leveling indicator
- Safety brackets
- Emergency stop button
- Emergency lowering system
- Dual locking castors
- Forklift pockets
- All motion alarm
- Folding guardrails
- Cylinder holding valve
| Model | SF0.3 -1.8 | SF0.3 - 3.0 | SF0.3 - 3.9 | SF0.2 - 4.8 |
| Max. Working Height | 3800 mm | 5000 mm | 5900 mm | 6800 mm |
| Max. Platform Height | 1800 mm | 3000 mm | 3900 mm | 4800 mm |
| Min. Platform Height | 585 mm | 665 mm | 745 mm | 825 mm |
| Platform Length | 1155 mm | |||
| Platform Width | 600 mm | |||
| Max. Machine Height | 2860 mm | 4060 mm | 4960 mm | 5860 mm |
| Overall Height - Stowed | 1645 mm | 1725 mm | 1805 mm | 1885 mm |
| Overall Length | 1300 mm | |||
| Overall Width | 760 mm | |||
| Swinging Outriggers Expansion Size | N/A | 1170 mm x 1215 mm | ||
| Capacity | 300 kg | 200 kg | ||
| Lifting Motor | 12V / 0.8 kw | |||
| Time - Raise | 11 s | 35 s | 41 s | 46 s |
| Time - Lower | 8 s | 25 s | 29 s | 36 s |
| Battery Voltage/ Capacity | 12V / 105 Ah | |||
| Charger | 12 V / 15 A | |||
| Tire Size | 4 * Φ150 mm * 50 mm | |||
| Overall Net Weight | 360 kg | 390 kg | 450 kg | 480 kg |
| Tiller Steering Handle | Optional | |||
| Lithium Battery | Optional | |||
